Spectral features

After this module you should be able to:

• explain Welch's method in three steps and say what each setting controls;
• compute absolute band power, relative band power and a band ratio, and say which one a given protocol needs;
• read a spectrum in dB and spot the 1/f background, the alpha peak and line noise;
• choose median instead of mean averaging when a recording has artifacts, and say why.

Band power is the bridge between "I can see alpha" and neurofeedback. Nearly every protocol rewards or inhibits the power in some band at some site, so this is the feature you will compute most.

Welch's method #

A single Fourier transform of a long recording gives a noisy spectrum. Welch's method trades frequency detail for stability:

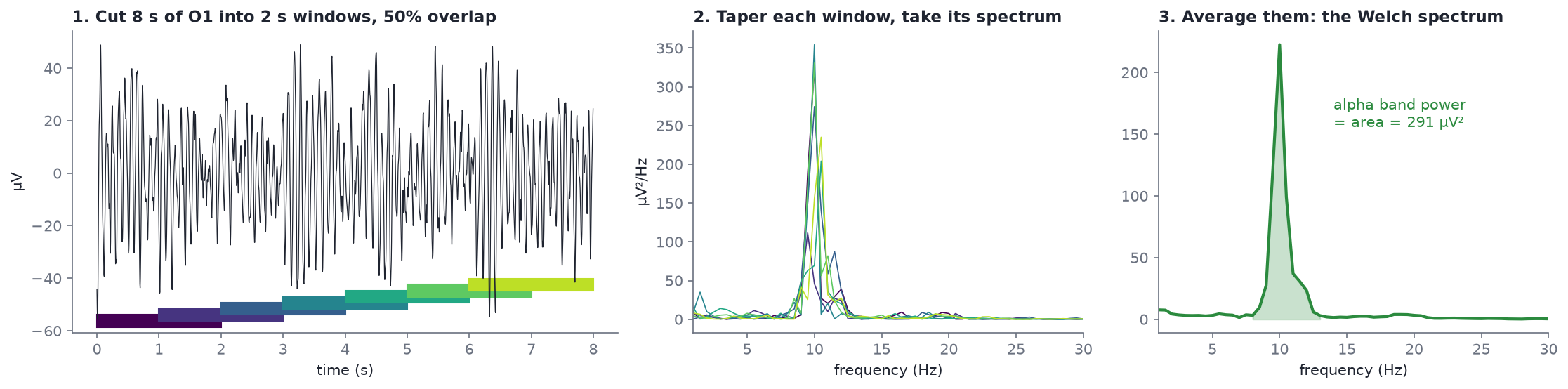

Eight seconds of O1 from s01_rest_eyes-closed_19ch.edf, 1-45 Hz.

1. Cut the signal into overlapping windows, here 2 s long with 50% overlap.
2. Taper each window (a Hann window fades the edges to zero, which reduces spectral leakage) and take its spectrum (a periodogram).
3. Average the spectra.

The settings and what they buy you:

In MNE: raw.compute_psd(method="welch", fmin=1, fmax=40, n_fft=int(2 * raw.info["sfreq"])). The syllabus's script uses n_fft defaults, which is fine for a first look.

Band power: absolute, relative, ratio #

The area under the spectrum between two frequencies is the absolute band power, in µV². In the figure above, the shaded alpha area is 291 µV² for those 8 seconds.

Relative band power divides by the total power over a broad range (here 1-40 Hz). It is unitless, usually given as a percentage, and partly cancels differences that affect all frequencies equally, such as electrode impedance, skull thickness or amplifier gain. This is why many protocols use relative power.

Ratios compare two bands directly, e.g. theta/beta. They also cancel overall scale, but they double the ways a number can move: a ratio rises if the top goes up or the bottom goes down.

From code/labs/m10_band_power.py, O1 in the resting-state pair (median Welch, 2 s windows):

Notice that eyes-open delta is 47% of total. That is not deep sleep; it is eye movements and blinks (most of their energy is below 4 Hz) in a recording where the eyes are open. Relative power is only as clean as the data under it.

Where each band lives #

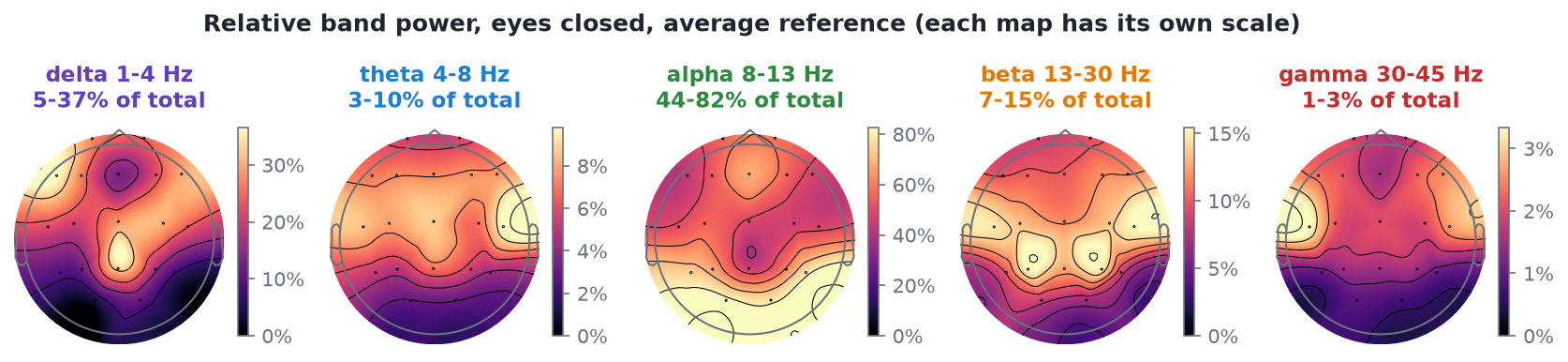

Relative power per band, s01 eyes closed, average reference. Each map has its own colour scale.

With eyes closed, alpha is 44-82% of total power depending on the channel, highest at the back. Delta (5-37%) is highest at the front, where eye movements land. Gamma (1-3%) is tiny everywhere; above 30 Hz, scalp EEG is hard to separate from muscle.

The same feature on a 4-channel headband #

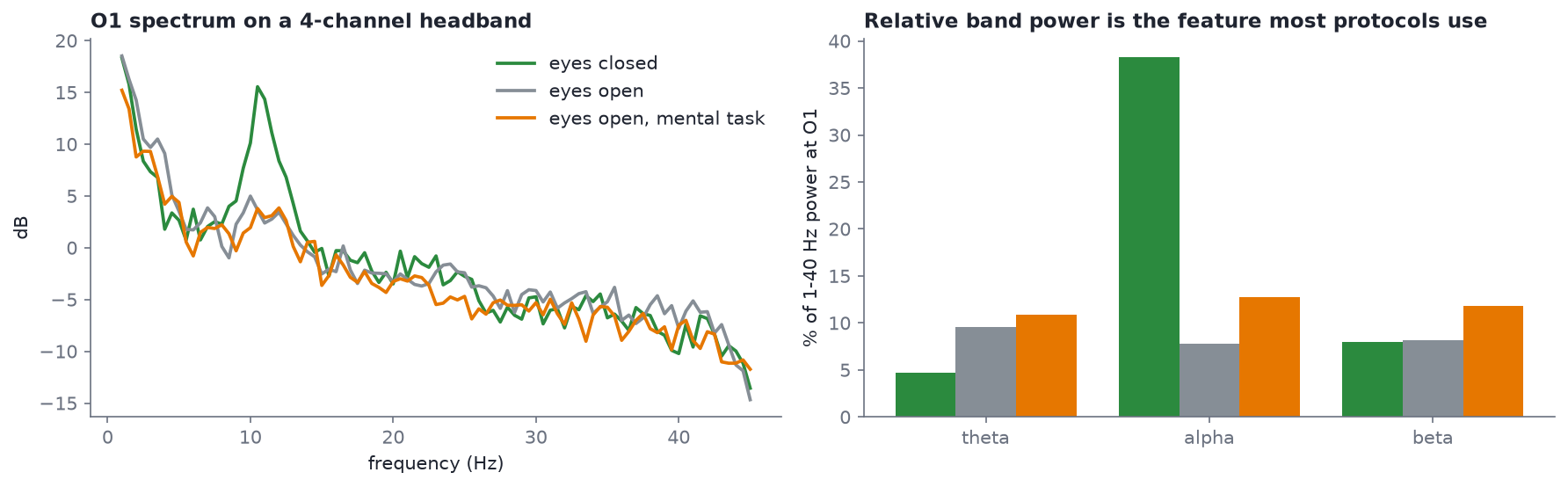

s11_4ch_eyes-closed.edf, s12_4ch_eyes-open.edf, s13_4ch_eyes-open_task.edf, channel O1.

Four electrodes are enough to see alpha reactivity at O1. The task condition shows slightly higher beta than plain eyes open; with under a minute per condition from one person, that is a hint, not a finding.

Theta/beta and other ratios #

The theta/beta ratio (TBR) at Cz is the best-known ratio in neurofeedback, historically associated with attention. From the resting pair:

• eyes closed, Cz: TBR = 0.79
• eyes open, Cz: TBR = 1.40

The same person, minutes apart, and the ratio nearly doubles with eye state alone. Caveats for any ratio:

• It depends on eye state, drowsiness, age, reference and band edges, so only compare ratios measured the same way.
• Blinks and eye movements put power into theta; muscle puts power into beta. Either can move the ratio without the brain changing. (Module 13 shows this in a feedback loop.)
• Large studies have questioned TBR as a diagnostic marker for ADHD (see Arns, Conners and Kraemer, 2013, Journal of Attention Disorders, "A decade of EEG theta/beta ratio research in ADHD: a meta-analysis"). Use it as a feature, not a diagnosis.

Peak alpha frequency #

The frequency of the alpha peak varies between people (roughly 8-12 Hz in adults) and slows with drowsiness and age. For s01 with eyes closed, the peak over O1, O2 and Pz is 10.0 Hz. The alpha zoom figure from Module 04 shows the same thing in the time domain: about 10 peaks per second.

With eyes open, the same search returns 12.0 Hz, but look at the spectrum before believing it: when alpha is suppressed there is no clear peak, and "the biggest value between 7 and 14 Hz" is just noise. A peak frequency needs a peak.

Some protocols individualise band edges around the peak alpha frequency (for example "upper alpha = PAF to PAF + 2 Hz") rather than using fixed 8-13 Hz edges.

The 1/f background #

Every EEG spectrum slopes downward: power falls roughly as 1/f^χ with frequency. This aperiodic component sits under the rhythmic peaks, and part of what looks like "more theta" or "less beta" can be a change in the slope rather than in any rhythm. If you go further into spectral analysis, read about separating the two with specparam (formerly FOOOF): Donoghue et al. (2020), "Parameterizing neural power spectra into periodic and aperiodic components", Nature Neuroscience 23, and the specparam documentation.

Median beats mean when there are artifacts #

Welch averages many windows. If one window contains a huge artifact, the mean is dragged up by it; the median ignores it as long as most windows are clean.

From code/labs/m10_band_power.py, Fp1 delta power in s06_pipeline_stage0_raw_19ch.edf (deliberately not cropped, so the headset-off junk at the end is included):

A factor of more than 1,000 from a few seconds of junk. Median averaging is a good default for resting-state band power. It is not a substitute for looking at the data and rejecting what is bad (Lab 2 shows a case where you need both).

Hands-on #

python code/labs/m10_band_power.py

The core computation, as in the syllabus's Week 2 script:

from eeg101 import load_sample

raw = load_sample("rest_ec").filter(1.0, 40.0)
spec = raw.compute_psd(method="welch", fmin=1, fmax=40, n_fft=int(2 * raw.info["sfreq"]), average="median")
psd, freqs = spec.get_data(return_freqs=True)          # psd in V²/Hz, shape (channels, freqs)
psd_uv = psd * 1e12                                     # µV²/Hz
df = freqs[1] - freqs[0]

alpha = psd_uv[:, (freqs >= 8) & (freqs < 13)].sum(axis=1) * df     # absolute, µV²
total = psd_uv.sum(axis=1) * df
relative_alpha = alpha / total
print(dict(zip(raw.ch_names, (relative_alpha * 100).round(1))))

spec.plot()                     # all channels
spec.plot_topomap()             # standard bands on head maps

Try:

1. Change n_fft to int(4 * sfreq) and to int(0.5 * sfreq). How does the alpha peak's shape change?
2. Compute relative alpha for the eyes-open file and list the channels where it drops most.
3. Compute theta/beta at Cz for the three headband conditions. (The headband has Cz.)

MNE's Spectrum class tutorial covers the Spectrum object in depth. For why the maths works, watch Mike X Cohen's "Static spectral analysis" lectures in the ANTS playlist, and work through notebooks 3-4 of Kramer and Eden's Python for the practicing neuroscientist, which derive spectral analysis of EEG rhythms from first principles.
